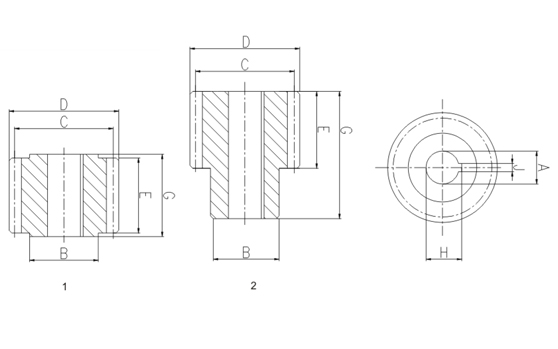

| 产品型号 Catalog No | 图号 Fig | 齿数 Z | 内径 Bore | 毂径 Hua dia | 节圆直径Pitch.dia | 外径Out.dia | 齿幅Width | 总长度Length | J | H |
| AH7 | B | C | D | E | G | |||||
| HG040-15-35 | 1 | 15 | 35 | 52 | 63.66 | 71.7 | 40 | 50 | 10 | 38.3 |
| HG040-18-32-T | 2 | 18 | 32 | 55 | 76.39 | 84.4 | 40 | 75 | 10 | 35.3 |
| HG040-20-35 | 1 | 20 | 35 | 52 | 84.88 | 92.9 | 40 | 50 | 10 | 38.3 |
| HG040-20-45 | 1 | 20 | 45 | 65 | 84.88 | 92.9 | 40 | 50 | 14 | 48.8 |
| HG040-21-32-T | 2 | 21 | 32 | 55 | 89.13 | 97.1 | 40 | 75 | 10 | 35.3 |
| HG040-21-35-T | 2 | 21 | 35 | 55 | 89.13 | 97.1 | 40 | 75 | 10 | 38.3 |
| HG040-21-40-T | 2 | 21 | 40 | 62 | 89.13 | 97.1 | 40 | 75 | 12 | 43.3 |
| HG040-21-45-T | 2 | 21 | 45 | 68 | 89.13 | 97.1 | 40 | 75 | 14 | 48.8 |
| HG040-22-35 | 1 | 22 | 35 | 52 | 93.37 | 101.4 | 40 | 50 | 10 | 38.3 |
| HG040-22-45 | 1 | 22 | 45 | 65 | 93.37 | 101.4 | 40 | 50 | 14 | 48.8 |
| HG040-24-32-T | 2 | 24 | 32 | 55 | 101.86 | 109.9 | 40 | 75 | 10 | 35.3 |
| HG040-24-35-T | 2 | 24 | 35 | 55 | 101.86 | 109.9 | 40 | 75 | 10 | 38.3 |
| HG040-24-40-T | 2 | 24 | 40 | 62 | 101.86 | 109.9 | 40 | 75 | 12 | 43.3 |
| HG040-24-45-T | 2 | 24 | 45 | 68 | 101.86 | 109.9 | 40 | 75 | 14 | 48.8 |
| HG040-24-55-T | 2 | 24 | 55 | 80 | 101.86 | 109.9 | 40 | 80 | 16 | 59.3 |
| HG040-25-35 | 1 | 25 | 35 | 52 | 106.1 | 114.1 | 40 | 50 | 10 | 38.3 |
| HG040-25-45 | 1 | 25 | 45 | 65 | 106.1 | 114.1 | 40 | 50 | 14 | 48.8 |
| HG040-27-40-T | 2 | 27 | 40 | 75 | 114.6 | 122.6 | 40 | 80 | 12 | 43.3 |
| HG040-30-40-T | 2 | 30 | 40 | 80 | 127.33 | 135.3 | 40 | 80 | 12 | 43.3 |
| HG040-30-45-T | 2 | 30 | 45 | 80 | 127.33 | 135.3 | 40 | 80 | 15 | 48.8 |
