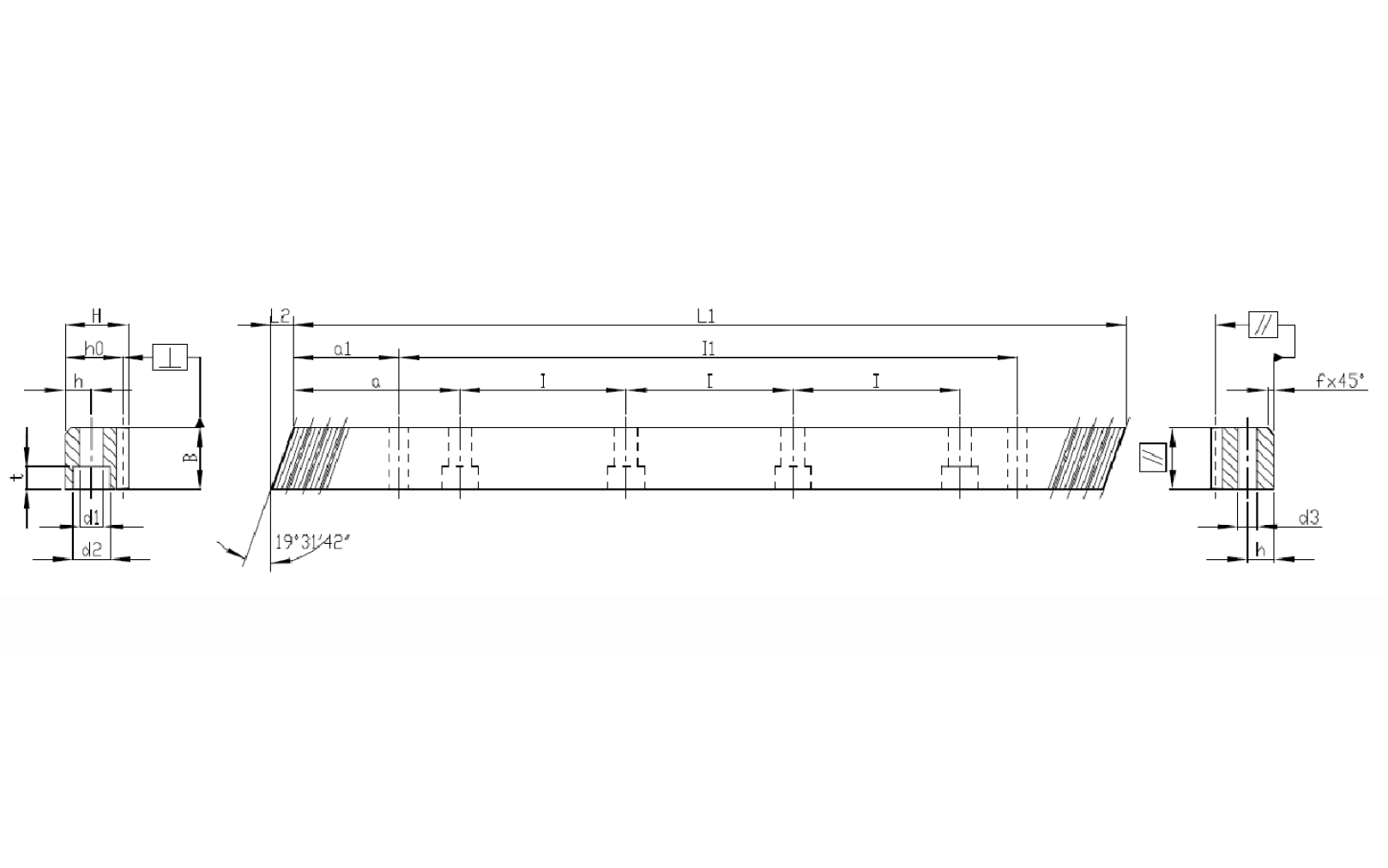

| 模数 | Pt | L1 | L2 | 齿数 | B | H | ho | f | a | l | 孔数 | h | d1 | d2 | t | al | ll | d3 | fp2 | fp3 | 订单代码 |
| 1 | 3.33334 | 500.00 | 5.3 | 150 | 15 | 15 | 14.0 | 2 | 62.5 | 125 | 4 | 6 | 5 | 8 | 5 | 30.3 | 439.4 | 5.7 | 0.008 | 0.029 | 0106R050C10 |
| 1 | 3.33334 | 1000.00 | 5.3 | 300 | 15 | 15 | 14.0 | 2 | 62.5 | 125 | 8 | 6 | 5 | 8 | 5 | 30.3 | 939.4 | 5.7 | 0.008 | 0.033 | 0106R100C10 |
| 1 | 3.33334 | 1500.00 | 5.3 | 450 | 15 | 15 | 14.0 | 2 | 62.5 | 125 | 12 | 6 | 5 | 8 | 5 | 30.3 | 1439.4 | 5.7 | 0.008 | 0.033 | 0106R150C10 |
| 1.5 | 5.00001 | 500.00 | 6.7 | 100 | 19 | 19 | 17.5 | 2 | 62.5 | 125 | 4 | 8 | 7 | 11 | 7 | 31.7 | 436.6 | 5.7 | 0.008 | 0.029 | 1J06R50C10 |
| 1.5 | 5.00001 | 1000.00 | 6.7 | 200 | 19 | 19 | 17.5 | 2 | 62.5 | 125 | 8 | 8 | 7 | 11 | 7 | 31.7 | 936.6 | 5.7 | 0.008 | 0.034 | 1J06R100C10 |
| 2 | 6.66668 | 500.00 | 8.5 | 75 | 24 | 24 | 22.0 | 2 | 62.5 | 125 | 4 | 8 | 7 | 11 | 7 | 31.7 | 436.6 | 5.7 | 0.008 | 0.029 | 0206R050C10 |
| 2 | 6.66668 | 1000.00 | 8.5 | 150 | 24 | 24 | 22.0 | 2 | 62.5 | 125 | 8 | 8 | 7 | 11 | 7 | 31.7 | 936.6 | 5.7 | 0.008 | 0.034 | 0206R100C10 |
| 2 | 6.66668 | 1500.00 | 8.5 | 225 | 24 | 24 | 22.0 | 2 | 62.5 | 125 | 12 | 8 | 7 | 11 | 7 | 31.7 | 1436.6 | 5.7 | 0.008 | 0.034 | 0206R150C10 |
| 2 | 6.66668 | 2000.00 | 8.5 | 300 | 24 | 24 | 22.0 | 2 | 62.5 | 125 | 16 | 8 | 7 | 11 | 7 | 31.7 | 1936.6 | 5.7 | 0.009 | 0.038 | 0206R200C10 |
| 2.5 | 8.33335 | 500.00 | 10.3 | 60 | 29 | 29 | 26.5 | 2 | 62.5 | 125 | 4 | 9 | 9 | 15 | 9 | 35.0 | 430.0 | 7.7 | 0.008 | 0.032 | 2J06R050C10 |
| 2.5 | 8.33335 | 1000.00 | 10.3 | 120 | 29 | 29 | 26.5 | 2 | 62.5 | 125 | 8 | 9 | 9 | 15 | 9 | 35.0 | 930.0 | 7.7 | 0.009 | 0.036 | 2J06R100C10 |
| 2.5 | 8.33335 | 1500.00 | 10.3 | 180 | 29 | 29 | 26.5 | 2 | 62.5 | 125 | 12 | 9 | 9 | 15 | 9 | 35.0 | 1430.0 | 7.7 | 0.009 | 0.036 | 2J06R150C10 |
| 2.5 | 8.33335 | 2000.00 | 10.3 | 240 | 29 | 29 | 26.5 | 2 | 62.5 | 125 | 16 | 9 | 9 | 15 | 9 | 35.0 | 1930.0 | 7.7 | 0.010 | 0.041 | 2J06R200C10 |
| 3 | 10.00002 | 500.00 | 10.3 | 50 | 29 | 29 | 26.0 | 2 | 62.5 | 125 | 4 | 9 | 9 | 15 | 9 | 35.0 | 430.0 | 7.7 | 0.008 | 0.032 | 0306R050C10 |
| 3 | 10.00002 | 1000.00 | 10.3 | 100 | 29 | 29 | 26.0 | 2 | 62.5 | 125 | 8 | 9 | 9 | 15 | 9 | 35.0 | 930.0 | 7.7 | 0.009 | 0.037 | 0306R100C10 |
| 3 | 10.00002 | 1500.00 | 10.3 | 150 | 29 | 29 | 26.0 | 2 | 62.5 | 125 | 12 | 9 | 9 | 15 | 9 | 35.0 | 1430.0 | 7.7 | 0.009 | 0.037 | 0306R150C10 |
| 3 | 10.00002 | 2000.00 | 10.3 | 200 | 29 | 29 | 26.0 | 2 | 62.5 | 125 | 16 | 9 | 9 | 15 | 9 | 35.0 | 1930.0 | 7.7 | 0.010 | 0.042 | 0306R200C10 |
| 4 | 13.33335 | 506.67 | 13.8 | 38 | 39 | 39 | 35.0 | 3 | 62.5 | 125 | 4 | 12 | 9 | 15 | 9 | 33.3 | 440.1 | 7.7 | 0.009 | 0.034 | 0406R050C10 |
| 4 | 13.33335 | 506.67 | 13.8 | 38 | 39 | 39 | 35.0 | 3 | 62.5 | 125 | 4 | 12 | 13 | 20 | 13 | 33.3 | 440.1 | 11.7 | 0.009 | 0.034 | 0406R050CS0 |
| 4 | 13.33335 | 1000.00 | 13.8 | 75 | 39 | 39 | 35.0 | 3 | 62.5 | 125 | 8 | 12 | 9 | 15 | 9 | 33.3 | 933.4 | 7.7 | 0.010 | 0.040 | 0406R100C10 |
| 4 | 13.33335 | 1000.00 | 13.8 | 75 | 39 | 39 | 35.0 | 3 | 62.5 | 125 | 8 | 12 | 13 | 20 | 13 | 33.3 | 933.4 | 11.7 | 0.010 | 0.040 | 0406R100CS0 |
| 4 | 13.33335 | 1506.67 | 13.8 | 113 | 39 | 39 | 35.0 | 3 | 62.5 | 125 | 12 | 12 | 13 | 20 | 13 | 33.3 | 1440.1 | 11.7 | 0.010 | 0.040 | 0406R150CS0 |
| 4 | 13.33335 | 2000.00 | 13.8 | 150 | 39 | 39 | 35.0 | 3 | 62.5 | 125 | 16 | 12 | 9 | 15 | 9 | 33.3 | 1933.4 | 7.7 | 0.011 | 0.045 | 0406R200C10 |
| 4 | 13.33335 | 2000.00 | 13.8 | 150 | 39 | 39 | 35.0 | 3 | 62.5 | 125 | 16 | 12 | 13 | 20 | 13 | 33.3 | 1933.4 | 11.7 | 0.011 | 0.045 | 0406R200CS0 |
| 5 | 16.66669 | 500.00 | 17.4 | 30 | 49 | 39 | 34.0 | 3 | 62.5 | 125 | 4 | 12 | 13 | 20 | 13 | 37.5 | 425.0 | 11.7 | 0.009 | 0.034 | 0506R050C10 |
| 5 | 16.66669 | 1000.00 | 17.4 | 60 | 49 | 39 | 34.0 | 3 | 62.5 | 125 | 8 | 12 | 13 | 20 | 13 | 37.5 | 925.0 | 11.7 | 0.010 | 0.040 | 0506R100C10 |
| 5 | 16.66669 | 1500.00 | 17.4 | 90 | 49 | 39 | 34.0 | 3 | 62.5 | 125 | 12 | 12 | 13 | 20 | 13 | 37.5 | 1425.0 | 11.7 | 0.010 | 0.040 | 0506R150C10 |
| 5 | 16.66669 | 2000.00 | 17.4 | 120 | 49 | 39 | 34.0 | 3 | 62.5 | 125 | 16 | 12 | 13 | 20 | 13 | 37.5 | 1925.0 | 11.7 | 0.011 | 0.045 | 0506R200C10 |
| 6 | 20.00009 | 500.00 | 20.9 | 25 | 59 | 49 | 43.0 | 3 | 62.5 | 125 | 4 | 16 | 17 | 26 | 17 | 37.5 | 425.0 | 15.7 | 0.009 | 0.034 | 0606R050C10 |
| 6 | 20.00009 | 1000.00 | 20.9 | 50 | 59 | 49 | 43.0 | 3 | 62.5 | 125 | 8 | 16 | 17 | 26 | 17 | 37.5 | 925.0 | 15.7 | 0.010 | 0.040 | 0606R100C10 |
| 6 | 20.00009 | 1500.00 | 20.9 | 75 | 59 | 49 | 43.0 | 3 | 62.5 | 125 | 12 | 16 | 17 | 26 | 17 | 37.5 | 1425.0 | 15.7 | 0.010 | 0.040 | 06606R150C10 |
| 6 | 20.00009 | 2000.00 | 20.9 | 100 | 59 | 49 | 43.0 | 3 | 62.5 | 125 | 16 | 16 | 17 | 26 | 17 | 37.5 | 1925.0 | 15.7 | 0.011 | 0.045 | 0606R200C10 |
| 8 | 26.66671 | 480.00 | 28.0 | 18 | 79 | 79 | 71.0 | 3 | 60.0 | 120 | 4 | 25 | 21 | 33 | 21 | 120.0 | 240.0 | 19.7 | 0.011 | 0.037 | 0806R050C10 |
| 8 | 26.66671 | 960.00 | 28.0 | 36 | 79 | 79 | 71.0 | 3 | 60.0 | 120 | 8 | 25 | 21 | 33 | 21 | 120.0 | 720.0 | 19.7 | 0.011 | 0.043 | 0806R100C10 |
| 8 | 26.66671 | 1440.00 | 28.0 | 54 | 79 | 79 | 71.0 | 3 | 60.0 | 120 | 12 | 25 | 21 | 33 | 21 | 120.0 | 1200.0 | 19.7 | 0.011 | 0.043 | 0806R150C10 |
| 8 | 26.66671 | 1920.00 | 28.0 | 72 | 79 | 79 | 71.0 | 3 | 60.0 | 120 | 16 | 25 | 21 | 33 | 21 | 120.0 | 1680.0 | 19.7 | 0.012 | 0.048 | 0806R200C10 |
| 10 | 33.33339 | 1000.00 | 35.1 | 30 | 99 | 99 | 89.0 | 3 | 62.5 | 125 | 8 | 32 | 32 | 48 | 32 | 125.0 | 750.0 | 19.7 | 0.011 | 0.043 | 1006R100C10 |
| 10 | 33.33339 | 1500.00 | 35.1 | 45 | 99 | 99 | 89.0 | 3 | 62.5 | 125 | 12 | 32 | 32 | 48 | 32 | 125.0 | 1250.0 | 19.7 | 0.011 | 0.043 | 1006R150C10 |
| 12 | 40.00006 | 1000.00 | 42.6 | 25 | 120 | 120 | 108.0 | 3 | 40.0 | 125 | 8 | 40 | 38 | 58 | 38 | 102.5 | 750.0 | 19.7 | 0.013 | 0.046 | 1206R100C10 |
